Ergonomics and the surgeon
(first published in Clinical Science for Surgeons
edited Burnett 1981)

Publication history, Reflections & comments

Welcome

Surgery

Surgery & ergonomics

Ergonomics

Information design

Editorials, book reviews







Ergonomics is the scientific study of man at work. Based on knowledge of normal human capacity and structure, it is specifically concerned with the effect on human performance in work of the following factors:

(1) equipment design,
(2) workplace layout,
(3) environmental conditions such as lighting, temperature, humidity and noise, and
(4) related questions of skill acquisition, productivity, and safety.

So far, the main application of ergonomics to surgery has been to microsurgery, because of the critical nature of fine perception and movement control needed, beyond normal unaided human capacity. The range of possible applications to the mainstream of general surgery is so wide and detailed that parts of it can only be outlined briefly in the space available.

30.1 Hand grips

There are five main classes of hand grip used by surgeons:
(1) power grip, for holding large instruments with strength;
(2) external precision grip, as in writing. The instrument is at an angle of about 45 degrees to the working surface;
(3) internal precision grip, the common scalpel grip in general surgery. The instrument is practically parallel to the work surface. A variant is used for scissors and ring-handled tools ;
(4) pinch grip, inappropriately termed the `precision grip' by anthropologists and orthopaedic surgeons, for picking up small objects;
(5) ulnar storage grip, used for tucking instruments into the palm by the ring and little fingers, while the remaining digits carry out some other more ac-curate function. This is an element of several important double grips of the hand useful in dissecting and suturing, which are discussed below more fully.

Simple armchair consideration of the power grip provides about a dozen criteria for handles to fit within it. The more important are a length greater than palm width of about 12 cm, diameter of 2-3 cm to maximize skin contact area, slight flattening to control rotation without friction, flattened areas for the thumb and index for more sensitive tilt control, avoidance of sharp projections which inhibit voluntary grip strength, a small pommel and hilt to prevent slip when muscles acting on the hand relax a little, and a bend, perhaps 30 degrees, where the handle joins the shaft, to avoid ulnar deviation of the user's wrist for long periods of time.

This simple check-list helps select from alternatives available those handle designs best suited for noo' use.
At the opposite extreme, study of the `external precision grip' of the hand gives a basis for rational design of the microsurgical needleholder described by Vickers. Based on the features of this hand grip. the handle requirements are a length over 12 cm. cylindrical. shape about 1 cm in diameter at the fingertip pulp - much thinner at the thumb cleft, and a closing pressure fo the for the fingertips of about 50 g wt, above which normal hand tremor becomes exaggerated.

The impact of this type of detailed analysis has been taken beyond the operator-instrument interface (the subject of ergonomics) to the instrument-tissue interface and interfaces within equipment. Vickers has elaborated further design criteria in this case, such as offset concavo-convex jaws, all based on a finely detailed consideration of surgical work.

Quite apart from handle design, hand grips and function deserve study because so much of the surgeon's work is holding tissue, peeling, and using probes, dissectors and scissors. Three examples follow.

Non-rigid tissue is best cut at right-angles to lines of tension, requiring two pulling forces, or a second re-action. A double hand grip by the operator allows him to stretch tissue in one hand while cutting it with excellent control with the other (Figure 30.1).

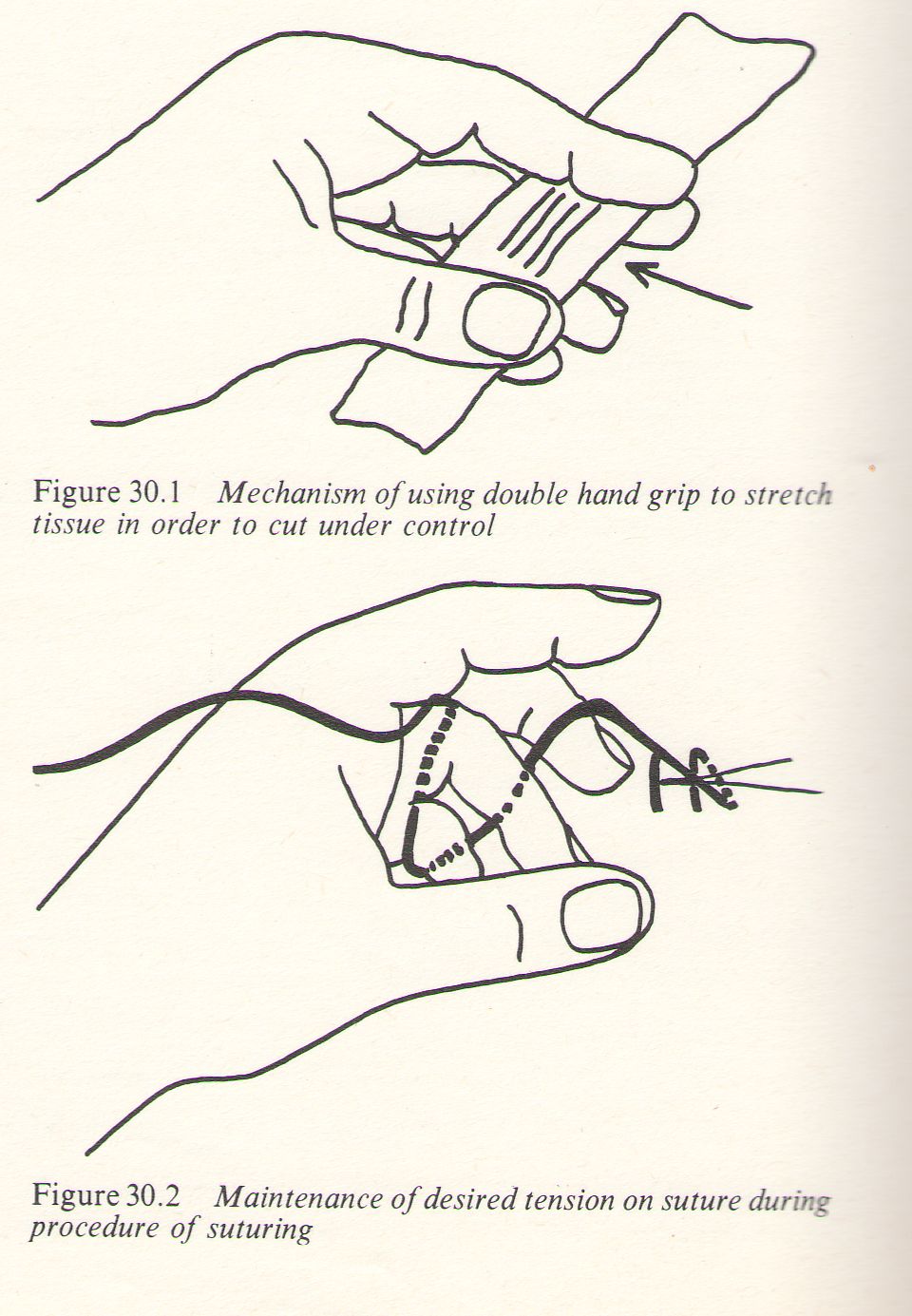

Figure 30.1  Mechanism of using double hand grip to stretch tissue in order to cut under control









Figure 30.2   Maintenance of desired tension on suture during procedure of suturing

A second example is the looping of a continuous suture from the tissue over the dorsum of the ring finger and under the palmar aspect of the flexed middle finger like a woman knitting. This lets the operator maintain the exact tension he wants on the suture while leaving the thumb and index finger free to pout open the tissue edges with-out needing an assistant, or to use dissecting forceps while holding the tissue edges apart with the bulk of his hand (Figure 30.2).

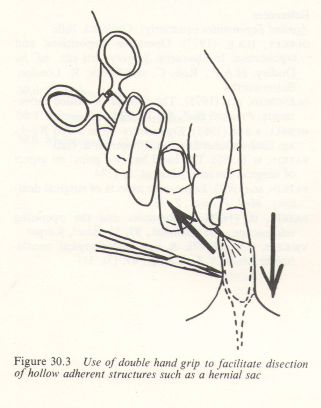

Dissecting a hollow adherent structure such as some hernial sacs, a difficult duodenal stump, or a gall bladder, is also simplified by a double hand grip in which the structure is tensed over the index tip, which provides very accurate information about the thickness of the layer being created, and the presence of intervening structures (Figure 30.3).

30.2 Workplace layout and organization

The best method of achieving efficient work organization is by many repetitions of a procedure, with gradual evolution of improvements. The same operating team carrying out many hip replacements or cleft palate repairs will achieve a rhythm of work impossible with changing staff and infrequent procedures. However, much can be achieved by learning, from industrial examples in textbooks of work study, and attending to several practical factors whose nature ranges from the very general to the detailed.
(1) Sympathetic competent leadership for example, and patience.

Repeatedly similar technique. Rehearsal of complicated new procedures.
Up-to-date cards of instruments and sutures used and special requirements for each procedure. The minimum of gadgetry for its own sake, and simplification of operative technique.

Attention to equipment placement and movement. based on envelopes of reach for the arm. forceps racks designed by Sir Heneage Oglivie in 1939, and the `drop-passage' of instruments described by H.A.F. Dudley in the standard work Operative Surgery.
Operator seating, arm support, and operating table design remain problems still managed by flair and in-tuition instead of scientific analysis, despite a wealth of practical guidelines in the ergonomic literature. With concepts already available, their application awaits only the interest and energy of some young surgeons. It is easier for a surgeon to learn ergonomics than for an ergonomist to learn enough surgery to bridge the gap between the two disciplines.

30.3 Environmental conditions—lighting and vision

Studies in factories have shown the effect of environmental conditions on productivity, which is highest at a working temperature of about 18 °C, measurable humidity, and little noise. Lighting is one of the main factors which determines visual acuity and perception, and is a good example of an environmental factor to analyse for surgical work. Acuity depends on:

(1) Lighting intensity: within broad limits, visual acuity is proportional to the logarithm of the lighting intensity. Surgeons should recognize the difference between 200lx,.for desk work, and 3000 lx for an abdominal operation. Outside the operative field, the theatre sister has a problem with relatively dull lighting, especially in picking out one of several similar instruments. (There are labelling implications here.)

(2) Glare: this decreases acuity the closer is its line of incidence to the line of sight, and the brighter it is. Matt or satin finish of instruments is an advantage, though less corrosion resistant and harder to keep clean. Green drapes were introduced by Lord Moynihan early this century for such reasons, but they mask cyanosis for the anaesthetist, who now needs a white undersheet to observe the patient's colour.

(3) Colour contrast: common examples are the use of the tourniquet, methylene blue, and the attempt to use vital staining of tissues (most recently with fluorescent dyes under the operating microscope) to help discriminate structures. As in many other situations, technology is less useful than experience, but a help in its absence.

(4) Other factors important for seeing fine detail include binocularity, visual health, trained and experienced perception, magnification, the moulding effect of directional lighting, colour rendering according to the colour temperature of the light source, filters, and reflectors, flicker, and unwanted effects such as heating. Lighting levels should in-crease in proportion to magnification. A total approach would consider the ergonomics of light positioning and controls.

30.4 Skill acquisition

The manual skills of surgeons can be studied in the same way as skills in sport, industry or music. The process of skill acquisition has been divided by Glencross, at Flinders University, into three stages. Coding, the first stage, is learning to relate a particular movement to a particular end result, such as pressing middle C on the piano, or squeezing an instrument or tissue with a given amount of force. The second stage of temporal organization is the arrangement of coded movements into a sequence, such as the notes of a melody or tying a surgical knot, perhaps under the microscope. In the final stage of hierarchical organization, there is a 'pro-gramme' or `sub-routine' ready to be called on by the operator, with preliminary modifications according to other sensory input or processing, but which cannot be interrupted halfway through. It gives a smooth and rhythmic performance economical in time, if it does not have to be repeated. This is a constant feature of the skills of the best workers, artists and sportsmen.

30.5 Future developments and implications

By their temperament and training, surgeons are well equipped to make practical use of the rich existing fund of ergonomic knowledge, aided by new habits of observation concentrating on the operator and his hands and eyes, instead of on the patient, and by the use of video-tape technology now readily available. Only the stimulus for such work has been missing up till now. The application of ergonomics, in the correct context of surgical pathology, should result in better handiwork at operation, more satisfaction and less worry for the operator, and a better result for the patient.

References

Applied Ergonomics (quarterly). Guilford, Iliffe
DUDLEY, H.A.F. (1977). Operative dispositions and ergonomics. In Operative Surgery, 3rd edn, ed. by Dudley, H.A.F., Rob, C. and Smith, R. London, Butterworths
GLENCROSS, D.J. (1975). The control of skilled movements, Psycho/. Bull., 84, 14-29
MURELL, K.F.H. (1965). Ergonomics: Man in His Work
ing Environment. London, Chapman & Hall PATKIN, M. (1965). The hand has two grips: an aspect of surgical dexterity, Lancet, 1, 1384
PATKIN, M. (1967). Ergonomic aspects of surgical dexterity, Med. J. Aust., 2, 755
PATKIN, M. (1978). Ergonomics and the operating microscope, Adv. Ophthal., 37, 53. Basel, Karger
VICKERS, D.W. (1977). A new microsurgical needleholder, Aust. N.Z. J. Surg., 47, (3),
